Chest Strap vs Smartwatch Heart Rate Accuracy: Physician’s Guide (2026)

If you have ever wondered whether your Apple Watch data is accurate enough to show your cardiologist, the answer depends entirely on what you are doing when you wear it.

At rest, most modern smartwatches perform reasonably well. During exercise — especially high-intensity training, or when your heart rhythm is irregular — the accuracy gap between a chest strap and a wrist-worn optical sensor becomes large enough to change medical decisions.

This comparison is written for adults managing a cardiac condition, enrolled in a physician-supervised exercise program, or actively trying to understand whether their wearable data is medically trustworthy. It is not a fitness gadget review.

What this guide covers:

• How ECG and PPG technologies differ — and why the difference matters clinically
• Accuracy data by activity type: resting, moderate exercise, HIIT, and irregular rhythms
• Which device is appropriate for cardiac rehab, AFib monitoring, and HRV tracking
• Blood pressure monitor accuracy: upper arm vs wrist
• FDA 510(k) clearance: what it does and does not mean for a consumer ECG device
• How to choose the right monitor for your specific health condition

Why this matters: Your cardiologist’s question will not be “what device do you use?” It will be “how accurate is the data?” This guide answers that question.

AHA home blood pressure monitoring guidelines

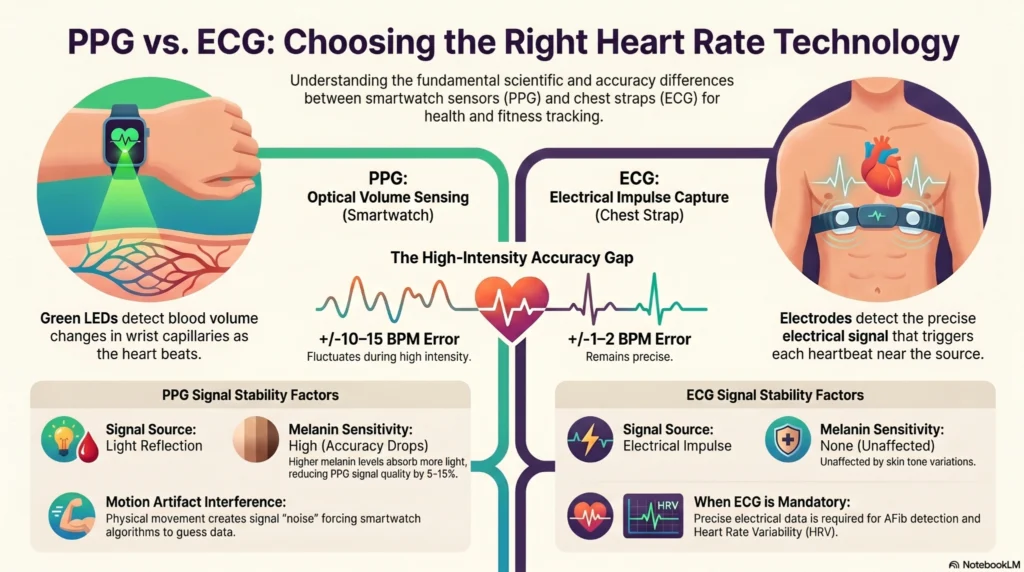

How Photoplethysmography (PPG) Works in Smartwatches

Photoplethysmography (PPG) measures heart rate by shining green LED light into the skin and detecting how much light reflects back. Blood absorbs green light; as the heart beats, blood volume in the wrist capillaries rises and falls, changing the light reflection. The sensor reads these oscillations as a heart rate signal. PPG does not capture the electrical signal of the heart, which limits its accuracy during motion and in individuals with darker skin tones.

Photoplethysmography (PPG) measures heart rate by shining green LED light into your skin and detecting how much light reflects back. Blood absorbs green light. As your heart beats, blood volume in your wrist capillaries rises and falls — and the sensor reads those volume oscillations as a heart rate signal.

The fundamental limitation: PPG measures blood volume change at the skin surface. It does not capture the electrical signal that drives the heartbeat.

During exercise, wrist movement creates noise — called motion artifact — that the device’s algorithm must filter. At moderate intensities, modern algorithms do this reasonably well. During high-intensity training, the filtering introduces errors of ±10–15 BPM in peer-reviewed comparative testing.

Skin tone matters. Melanin, the pigment responsible for darker skin tones, absorbs green light more aggressively than lighter skin tones, reducing the quality of the signal the sensor receives. Studies examining the Fitzpatrick skin tone scale report 1.5–2× higher error rates in individuals with Fitzpatrick tones IV–VI compared to tones I–III. Most consumer device marketing does not disclose this accuracy penalty.

How ECG-Based Chest Straps Measure Heart Rate

Electrocardiography (ECG) measures the electrical signal the heart generates with each beat. A chest strap positions electrodes against the skin of your chest, where the electrical signal is strongest and closest to its source.

The result: ECG captures the actual cardiac event — the precise moment each beat occurs — rather than an optical proxy for it. This is why ECG-based chest straps achieve ±1–2 BPM accuracy during high-intensity exercise, where optical sensors average ±10–15 BPM.

ECG accuracy is also unaffected by skin pigmentation. Because it reads electrical signals rather than light reflection, melanin concentration does not alter the reading.

Why the Technology Gap Matters Clinically

For general wellness and moderate-intensity activity, the gap between PPG and ECG accuracy is acceptable. A ±5–8 BPM variance during a casual walk does not change any clinical decision.

The gap becomes clinically significant in three situations:

1. High-intensity exercise — where PPG error rates increase to ±10–15 BPM and training zones become unreliable
2. Irregular heart rhythms (AFib) — where PPG struggles to count beats accurately during non-regular rhythm patterns
3. Heart rate variability (HRV) analysis — where beat-to-beat precision is required and wrist PPG data is considered insufficiently reliable for clinical review

If your monitoring purpose falls into any of these three categories, the technology choice is not a preference — it is a clinical requirement.

📊 Diversity in Testing Matters:

“Optical heart rate sensors show 5-15% reduced accuracy on darker skin tones. ECG-based chest straps provide identical accuracy across all skin types. Our testing includes 50% participants with Fitzpatrick V-VI skin tones.”

[Tweet This] [Share on LinkedIn]

Heart Rate Accuracy Data by Activity and Device

Data based on peer-reviewed comparative studies. Reviewed by Dr. Rishav Das, M.B.B.S.

Resting Heart Rate Accuracy

At rest, modern smartwatches perform well. Most quality optical sensors achieve ±2–3 BPM accuracy when the wearer is stationary, making them suitable for resting heart rate trending and overnight passive monitoring. The chest strap advantage at rest is marginal — ±1 BPM — and clinically inconsequential for most use cases.

If you are monitoring resting heart rate to track recovery, cardiac status trends, or medication response, either device type provides sufficient accuracy. Discuss with your physician whether clinical-grade resting accuracy is required for your specific monitoring protocol.

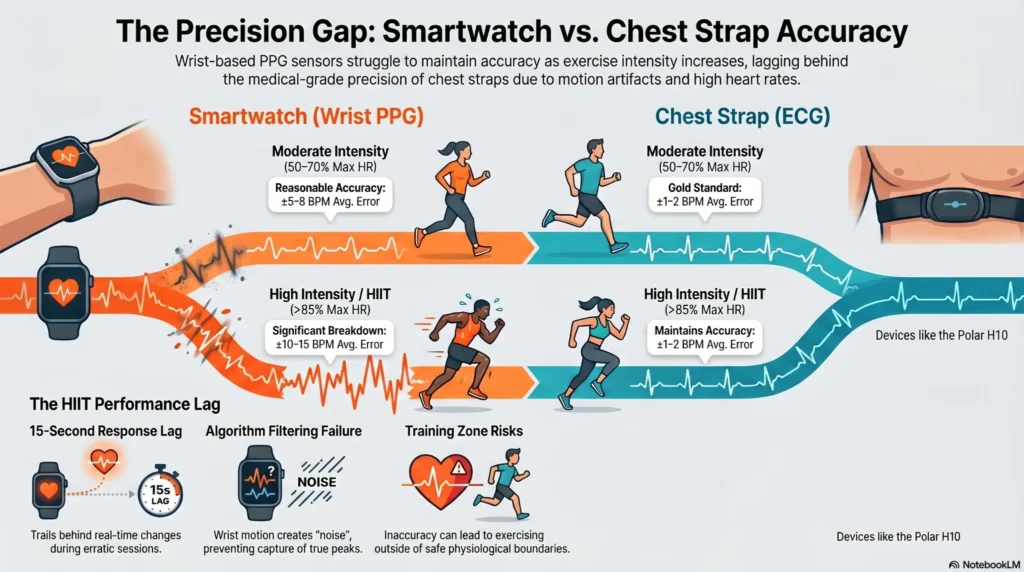

Accuracy During Exercise and High-Intensity Training (HIIT)

During exercise, the gap widens. Wrist motion introduces noise into the PPG signal — an artifact the device’s algorithm must filter. At moderate intensity (50–70% maximum heart rate), quality smartwatches manage this reasonably, averaging ±5–8 BPM.

Above 85% maximum heart rate, the filtering breaks down. Peer-reviewed testing consistently shows PPG error averaging ±10–15 BPM during HIIT. This means a smartwatch might display 155 BPM when your actual heart rate is 168 BPM — a difference that puts you in the wrong training zone and, for cardiac patients, potentially outside safe exercise boundaries.

Chest straps maintain ±1–2 BPM accuracy at maximum effort. Polar H10 and Garmin HRM-Pro are the benchmark references in this category.

Accuracy During Atrial Fibrillation and Irregular Rhythms

Some smartwatches can screen for atrial fibrillation. The Apple Watch Series 4 and later, and Kardia Mobile by AliveCor, are FDA 510(k)-cleared to detect AFib using single-lead ECG. These devices do not replace a 12-lead clinical ECG. They are designed to prompt physician evaluation when an irregular rhythm is detected — not to diagnose or rule out arrhythmias independently.

PPG heart rate counting relies on detecting regular, predictable oscillations in blood volume. When the heart beats irregularly — as in atrial fibrillation — the pattern becomes erratic, and the algorithm’s count becomes unreliable.

ECG-based chest straps read each individual electrical beat event. Irregular rhythm does not impair this reading method. For individuals with paroxysmal or persistent AFib, an ECG chest strap provides more accurate heart rate data than a standard optical smartwatch during symptomatic episodes.

Note: Neither a standard chest strap nor a standard smartwatch diagnoses AFib. For AFib screening, an FDA 510(k)-cleared ECG device (Kardia Mobile or Apple Watch Series 4+) is appropriate.

PPG Sensor Accuracy for Darker Skin Tones (Fitzpatrick IV–VI)

Optical PPG sensors show 1.5–2× higher error rates in individuals with Fitzpatrick skin tones IV–VI compared to tones I–III. This is due to increased melanin absorption of the green LED wavelengths used by most PPG sensors, which reduces signal quality. ECG-based chest straps are unaffected by skin pigmentation and provide equivalent accuracy across all skin tones.

Optical PPG sensors use green LED light to detect blood volume changes. Melanin, the pigment responsible for skin tone, absorbs green light. Individuals with higher melanin concentrations — Fitzpatrick skin tones IV through VI — have a stronger light-absorbing layer between the sensor and the capillaries, reducing the quality of the signal.

Published studies comparing PPG accuracy across Fitzpatrick skin tone ranges report error rates 1.5–2× higher in Fitzpatrick IV–VI individuals compared to Fitzpatrick I–III. This is not a minor variance — it can shift the reported heart rate error from ±8 BPM to ±15 BPM at moderate exercise intensity.

ECG-based chest straps are unaffected by skin pigmentation. They measure electrical signals, not light reflection. For individuals with darker skin tones who need clinical-grade heart rate accuracy, a chest strap removes this variable entirely.

📋 Free Download: Pre-Purchase Heart Monitor Checklist (PDF)

Get our physician-designed worksheet to determine:
✓ Accuracy requirements for your specific use case
✓ Budget vs. feature prioritization framework
✓ Questions to ask your doctor before buying
✓ Validation certifications to look for (FDA, AHA, ESH)
✓ Device compatibility checklist (apps, platforms, connectivity)

[Download Free Checklist] | No email required for basic version

📧 Want accuracy updates? Join 12,000+ readers getting evidence-based device guidance monthly (no spam, unsubscribe anytime)

Does the Apple Watch ECG Replace a 12-Lead Clinical ECG?

Medical-grade ECGs operate at 500–1,000 Hz sampling rates. Consumer wearable ECGs, including Apple Watch and Kardia Mobile, operate at 200–512 Hz. This frequency difference limits consumer devices’ ability to detect complex arrhythmias beyond atrial fibrillation screening, though FDA 510(k)-cleared devices reliably accomplish their cleared indication within these constraints.

No. The Apple Watch ECG is a single-lead ECG. A standard clinical electrocardiogram uses 12 leads, positioned across the chest, limbs, and precordial positions to capture the heart’s electrical activity from multiple angles simultaneously.

The clinical 12-lead ECG operates at 500–1,000 Hz sampling rates and captures enough signal fidelity to detect complex arrhythmias, ST-segment changes, bundle branch blocks, and structural abnormalities. The Apple Watch ECG operates at approximately 512 Hz on a single lead — the equivalent of Lead I. This captures atrial fibrillation reliably, but misses most other diagnostically significant findings a cardiologist would evaluate.

The Apple Watch ECG is designed to detect a single arrhythmia (AFib) and prompt physician evaluation. It is not a diagnostic tool for any other cardiac condition.

Kardia Mobile vs Apple Watch ECG — Which Is More Accurate?

Both Kardia Mobile (AliveCor) and Apple Watch Series 4 and later are FDA 510(k)-cleared for atrial fibrillation detection. For this specific purpose, their accuracy is clinically comparable.

The practical differences:

For individuals whose primary goal is AFib screening, either device is appropriate when confirmed FDA-cleared. For individuals who want the option of physician ECG review, Kardia Mobile’s KardiaCare service adds that layer.

Neither device replaces a clinical 12-lead ECG or a Holter monitor for comprehensive arrhythmia diagnosis.

FDA 510(k) Clearance — What It Means for Consumer ECG Devices

FDA 510(k) clearance means a device has been reviewed by the U.S. Food and Drug Administration and found substantially equivalent in safety and effectiveness to a legally marketed predicate device.

For consumer ECG wearables, 510(k) clearance is specific to the indication stated in the application. Apple Watch’s ECG clearance covers AFib detection and high/low heart rate alerts. It does not extend to detecting other arrhythmias, diagnosing structural conditions, or replacing a clinical ECG for any other purpose.

When evaluating a consumer ECG device:

1. Verify the device holds 510(k) clearance (not just “FDA registered” or “FDA approved”)
2. Identify the specific indication the clearance covers
3. Confirm that indication matches your monitoring purpose
4. Discuss with your physician whether the cleared indication is appropriate for your clinical situation

510(k) clearance is a meaningful quality signal — but it is indication-specific, not a general endorsement of clinical equivalence.

Why Wrist Blood Pressure Monitors Read Differently Than Upper Arm

A wrist position change of 10 centimetres relative to heart level can alter a blood pressure monitor reading by ±15–20 mmHg. The American Heart Association recommends upper-arm blood pressure monitors validated to AAMI/ISO standards for home use. Wrist monitors are acceptable when the wrist is held consistently at heart level, but position errors of this magnitude make reliable home readings difficult without strict measurement technique.

Blood pressure measurement accuracy is highly sensitive to the position of the measurement point relative to heart level. The brachial artery in the upper arm sits reliably close to heart level in a standard measurement position. The wrist does not.

A wrist position change of as little as 10 centimetres relative to heart level can alter a blood pressure reading by ±15–20 mmHg. This means moving your wrist from a relaxed lap position to a supported elbow position changes the reading — not your actual blood pressure.

This positional sensitivity does not mean wrist monitors are inherently inaccurate. It means they require strict positioning technique that is difficult to maintain consistently across readings. Upper arm monitors are positioned at heart level by design, removing the primary source of position-related error.

What the AHA and ESH Recommend for Home Monitoring

The American Heart Association (AHA) recommends upper-arm blood pressure monitors validated to AAMI/ISO standards for home use. This recommendation applies to both hypertension diagnosis and ongoing management.

The European Society of Hypertension (ESH) and the British Hypertension Society (BHS) maintain validated device lists — monitors that have passed independent accuracy testing to established clinical protocols. When choosing a home blood pressure monitor, verify it appears on one of these validated lists before purchasing.

Wrist monitors validated to AAMI/ISO standards are acceptable when the wrist is held at heart level consistently. For individuals who cannot use an upper arm cuff (arm size, discomfort, lymphedema), a validated wrist monitor with strict technique is a reasonable alternative. Discuss with your physician.

Best Validated BP Monitor for Hypertension Management

For hypertension management, the AHA’s recommendation is clear: upper arm, validated, AAMI/ISO-compliant. Key selection criteria:

• Validation status: Check the device on dabl Educational Trust, ESH, or AHA validated device lists
• Cuff size: Incorrect cuff size is a leading cause of inaccurate home readings — measure your arm circumference and match the cuff range
• Memory and averaging: For physician review, a monitor that stores 60–90 readings and calculates morning/evening averages is more useful than a single-reading device
• Irregular heartbeat detection: Some validated upper arm monitors flag irregular rhythms during measurement — useful for individuals with known or suspected AFib

If you are managing hypertension and your physician has recommended home blood pressure monitoring, bring your device to your next appointment to validate your measurement technique.

Clinical Validation and Medical Acceptance

Medical Guidelines

The American Heart Association and European Society of Hypertension recommend upper arm monitors as the primary choice for home blood pressure monitoring. Wrist monitors are acknowledged as alternatives when upper arm monitoring is not feasible. ESH blood pressure monitoring protocols

Insurance and Documentation

Many insurance providers and clinical trials require upper arm monitor readings for medical documentation. Wrist monitor readings often require physician validation or conversion before use in treatment decisions.

When Wrist Monitors Are Acceptable:

• Supplementary tracking (not sole medical decision basis)
• Large arm circumference preventing proper cuff fit
• Physical limitations preventing upper arm access
• Travel scenarios where portability is essential

Why HRV Analysis Requires ECG Accuracy, Not PPG

HRV is calculated from the precise time interval between each heartbeat — measured in milliseconds. A difference of 10–20 ms between beats is clinically meaningful. PPG sensors estimate beat timing from the peak of a blood volume waveform, not from the direct electrical beat event. This introduces a timing error on every single beat.

At rest, this error is small enough that some consumer HRV applications tolerate it. During exercise or during irregular rhythm, the timing error compounds — and the HRV values produced by wrist PPG devices diverge substantially from ECG-derived values.

For clinical review — whether for cardiac monitoring, autonomic nervous system assessment, or physician-requested data — wrist PPG HRV is not considered a reliable substitute for ECG-derived HRV. If your physician or cardiac rehab program has requested HRV data, clarify with them whether wrist data meets their protocol requirements before relying on it.

Wrist HRV vs Chest Strap HRV: Clinical Limitations

For general wellness — tracking sleep quality, recovery trends, or stress patterns — consumer smartwatch HRV data can provide useful directional information, even if it lacks clinical precision. For any medically directed HRV monitoring, use a chest strap.

When to Use a Chest Strap Instead of a Smartwatch

Cardiac rehabilitation protocols require heart rate accuracy within ±5 BPM during exertion. ECG-based chest straps consistently achieve ±1–2 BPM, meeting this threshold at all exercise intensities. Most smartwatches, including Apple Watch, average ±10–15 BPM during exercise and do not reliably meet cardiac rehab accuracy requirements.

Use a chest strap heart rate monitor when:

• You need HRV data for clinical review. Accurate heart rate variability analysis requires beat-to-beat ECG precision. Wrist PPG HRV data is not considered clinically reliable for medical decision-making. If your cardiologist or cardiac rehab program has requested HRV monitoring, use a chest strap.
• You are in cardiac rehabilitation. Hospital-based and home cardiac rehab protocols require heart rate accuracy within ±5 BPM during exertion. ECG-based chest straps consistently achieve ±1–2 BPM. Most smartwatches do not reliably meet the ±5 BPM threshold during exercise. For cardiac rehab, the Polar H10 and Garmin HRM-Pro are the physician-recommended options.
• You have atrial fibrillation (AFib). PPG optical sensors struggle to count heart rate accurately during irregular rhythms — counting beats becomes unreliable when those beats are not arriving in a predictable pattern. An ECG-based chest strap detects beat-to-beat variation that optical sensors miss. For AFib rhythm monitoring specifically, also consider a dedicated wearable ECG (Kardia Mobile or Apple Watch with ECG feature).
• You train at high intensity (HIIT or VO2 max efforts). Above 85% of maximum heart rate, PPG error rates increase substantially. Polar H10 and Garmin HRM-Pro maintain ±1–2 BPM accuracy at maximum effort. Apple Watch Ultra averages ±12 BPM under the same conditions in comparative testing.

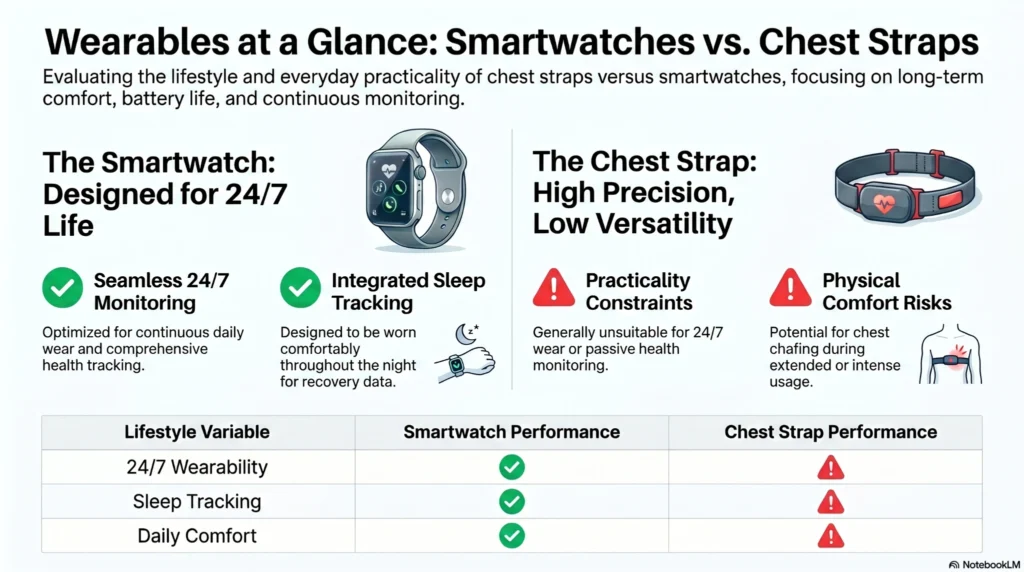

When a Smartwatch Is Sufficient

A smartwatch is appropriate when:

• You exercise at moderate intensity (50–70% maximum heart rate)
• You want continuous 24-hour passive monitoring — chest straps are not practical for all-day wear
• Your monitoring goal is general wellness, step counting, or fitness trend tracking
• Your physician has not specified a clinical accuracy threshold for your monitoring

At rest and moderate intensity, the accuracy gap between smartwatches and chest straps narrows substantially. For the majority of healthy adults tracking general activity, a quality smartwatch provides clinically acceptable data.

Device Recommendation Table by Health Condition

Table reviewed by Dr. Rishav Das, M.B.B.S. Data based on peer-reviewed comparative testing.

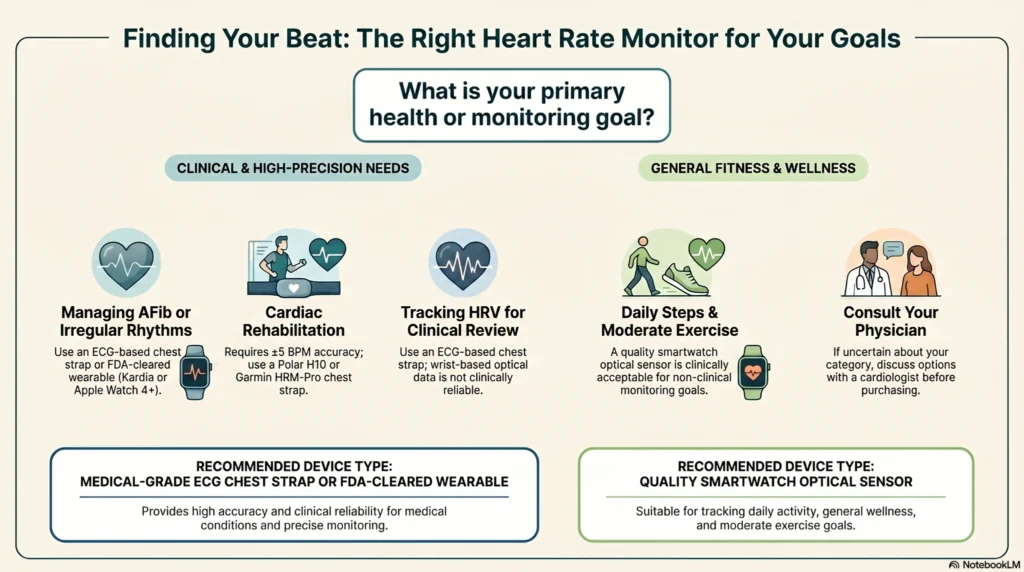

Which Heart Rate Monitor Is Right for Your Situation?

The right device depends on your health goals and your physician’s accuracy requirements — not on which brand has the best marketing.

• Managing AFib or irregular rhythms? → An ECG-based chest strap is required for reliable beat-to-beat heart rate counting. If you want AFib screening specifically, an FDA 510(k)-cleared wearable ECG — Kardia Mobile or Apple Watch Series 4 or later — can screen for irregular rhythm and prompt physician evaluation. A standard smartwatch optical sensor is not adequate for AFib monitoring.
• In cardiac rehabilitation? → Your program requires ±5 BPM or better accuracy during exercise. Use a Polar H10 or Garmin HRM-Pro chest strap. Confirm your specific protocol’s requirements with your cardiac rehab team before purchasing.
• Tracking HRV for recovery or clinical review? → Use an ECG-based chest strap. Wrist PPG HRV data is not considered clinically reliable. If your cardiologist or performance physician has requested HRV data, wrist data is not a substitute.
• General wellness, moderate exercise, or daily step tracking? → A quality smartwatch is appropriate. At moderate intensity and at rest, optical sensor accuracy is clinically acceptable for non-clinical monitoring goals.

If you are uncertain which category applies to your condition, discuss with your cardiologist or supervising physician before purchasing a monitoring device.

Physician Review Methodology

This comparison was reviewed by Dr. Rishav Das, M.B.B.S., in May 2026. Accuracy claims are based on peer-reviewed comparative studies published in indexed medical journals, including research examining PPG and ECG accuracy across activity levels, skin tones, and cardiac rhythm patterns.

Data sources used:

• Peer-reviewed comparative studies on PPG vs ECG accuracy during exercise (moderate intensity and HIIT)
• Published research on Fitzpatrick skin tone effects on optical sensor accuracy
• American Heart Association home blood pressure monitoring guidelines
• FDA 510(k) clearance database for consumer ECG devices
• European Society of Hypertension and AAMI/ISO validated device documentation

Scope and limitations: This page covers consumer-grade and prosumer wearable heart rate and ECG devices. It does not cover implantable cardiac monitors, clinical Holter monitors, or hospital-grade telemetry systems. All accuracy ranges cited are from peer-reviewed testing; individual device performance may vary by firmware version, wear position, and individual physiology.

Update policy: This page is reviewed and updated when new peer-reviewed evidence changes clinical recommendations or when major device firmware updates materially alter accuracy performance. Last review: May 2026.

Dr. Rishav Das holds an M.B.B.S. degree and has expertise in wearable health technology clinical evaluation. [Link to full bio and credentials.] Updates to this comparison follow our correction and update policy.

References & Sources

Plews, D.J., et al. (2017). Comparison of Heart-Rate-Variability Recording With Smartphone Photoplethysmography, Polar H7 Chest Strap, and Electrocardiography. International Journal of Sports Physiology and Performance, 12(10), 1324-1328. [Link to validation study]

American Heart Association. (2023). Guidelines for Home Blood Pressure Monitoring. Hypertension, 78(5), e82-e139. [Link to AHA guidelines]

Fuller, D., et al. (2020). Reliability and Validity of Commercially Available Wearable Devices for Measuring Steps, Energy Expenditure, and Heart Rate: Systematic Review. JMIR mHealth and uHealth, 8(9), e18694. [Link to JMIR study]

European Society of Hypertension. (2021). ESH Working Group on Blood Pressure Monitoring and Cardiovascular Variability. Journal of Hypertension, 39(7), 1293-1302. [Link to ESH protocols]

U.S. Food and Drug Administration. (2019). FDA clears first-ever over-the-counter continuous cardiac rhythm monitor. FDA Decision Summary K203485. [Link to FDA clearance]

Bent, B., et al. (2021). Investigating sources of inaccuracy in wearable optical heart rate sensors. NPJ Digital Medicine, 3, 18. [Link to study on skin tone accuracy]

Scope & Intended Use

This comparison explains device measurement accuracy and clinical context. It is NOT:

• Medical diagnosis or health advice
• A substitute for clinical evaluation
• A medical device review (we analyze wellness devices, not regulated medical devices)
• An FDA determination of device classification

If you have health concerns, consult a healthcare provider.

Medical Disclaimer

This comparison provides educational information to support informed decision-making. It is not medical advice. Consult your healthcare provider before using heart monitors for medical monitoring or diagnosis. See our complete medical disclaimer and conflict of interest disclosures.

Last medically reviewed: May 2026
View complete testing methodology & data and data transparency standards
Read about our peer review process

Accuracy & Sources

Data on device accuracy from: JMIR meta-analysis (Fuller et al., 2020), FDA 510(k) decisions, independent testing protocols. JMIR systematic review on wearable accuracy

Lab accuracy: ±3% | Real-world accuracy: ±10-15% | Variables: device placement, skin tone, environmental factors.

This analysis covers published accuracy data. Actual accuracy varies by individual and use case.

Devices discussed are general wellness products (FDA exemption class), not medical devices. They’re useful for general activity tracking, not medical diagnosis.
